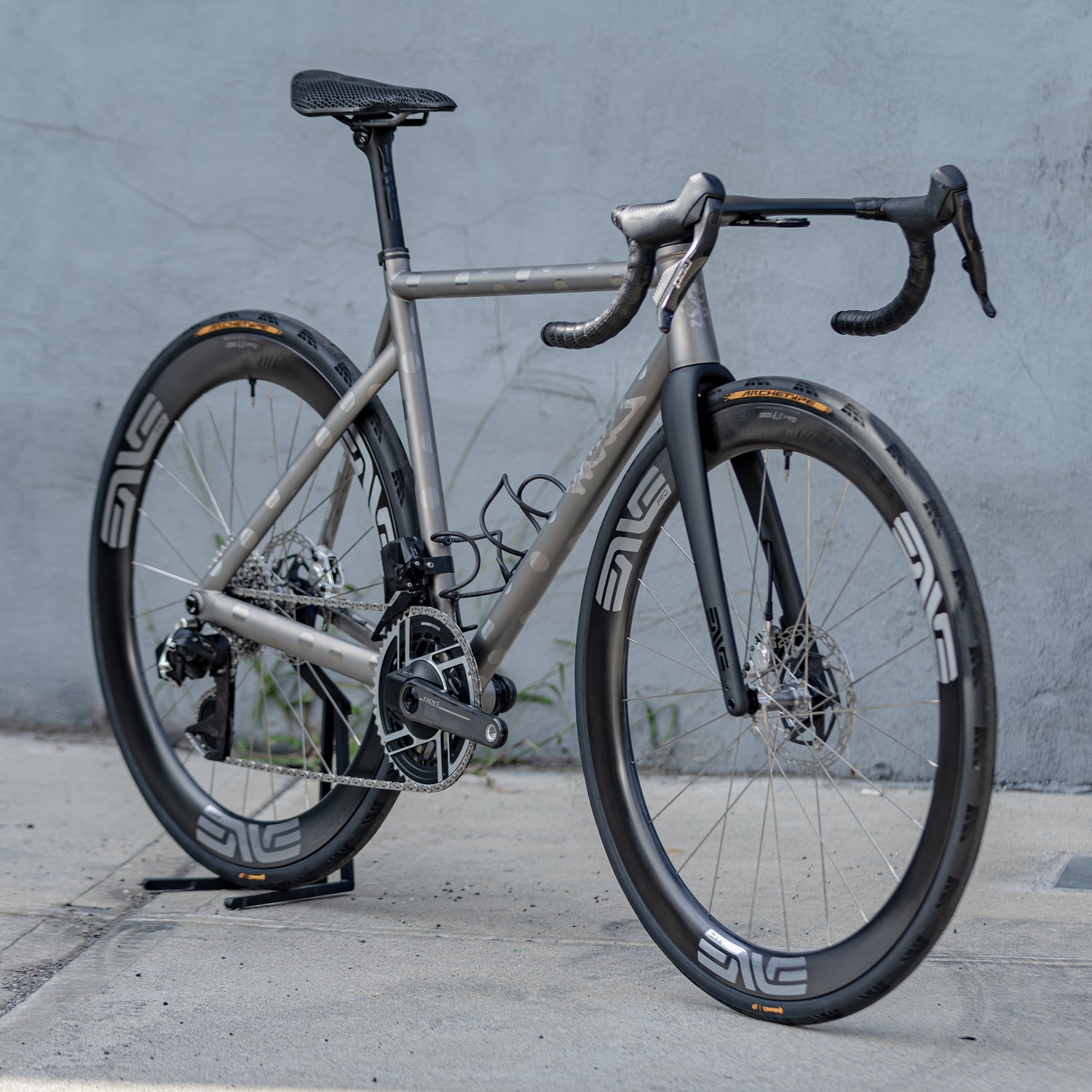

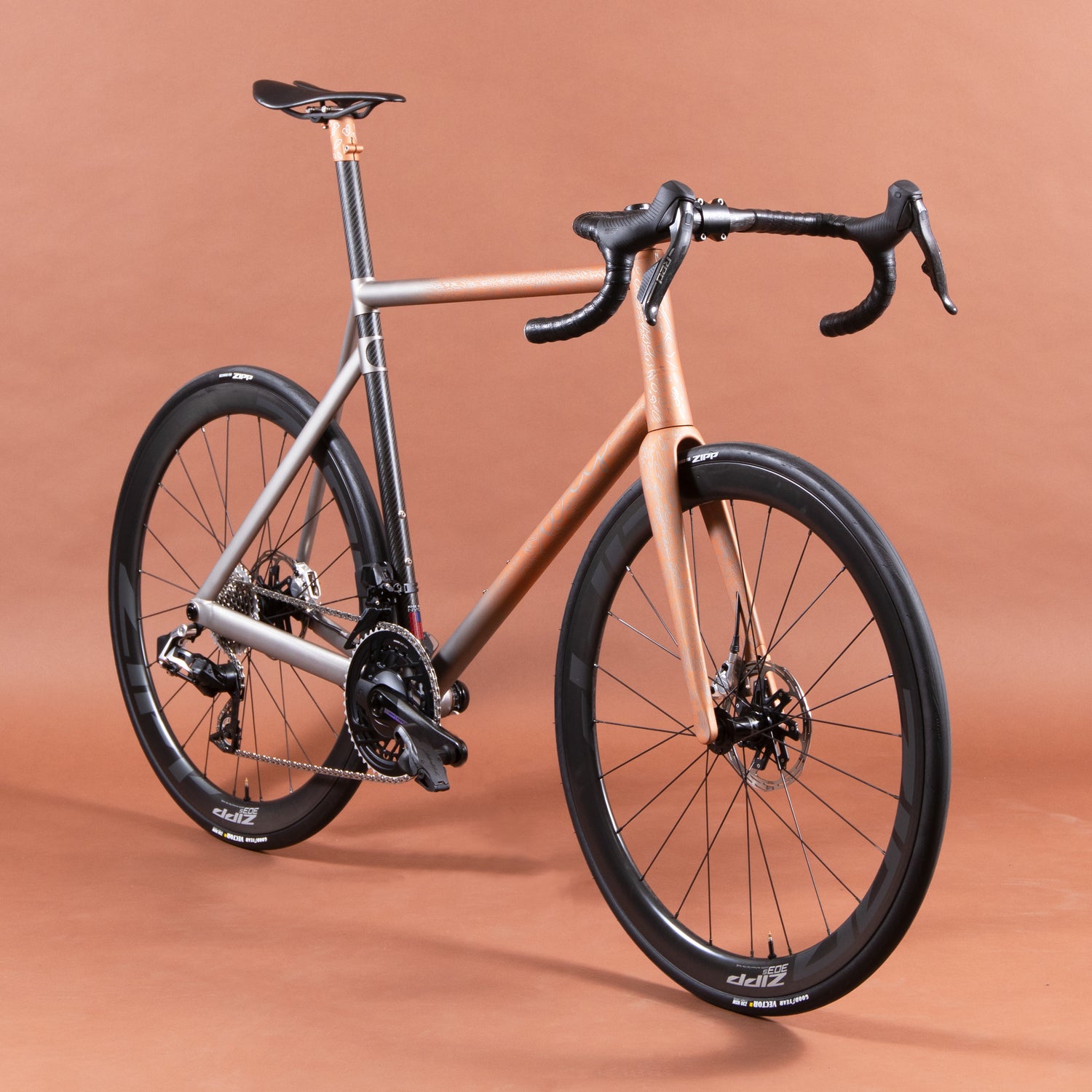

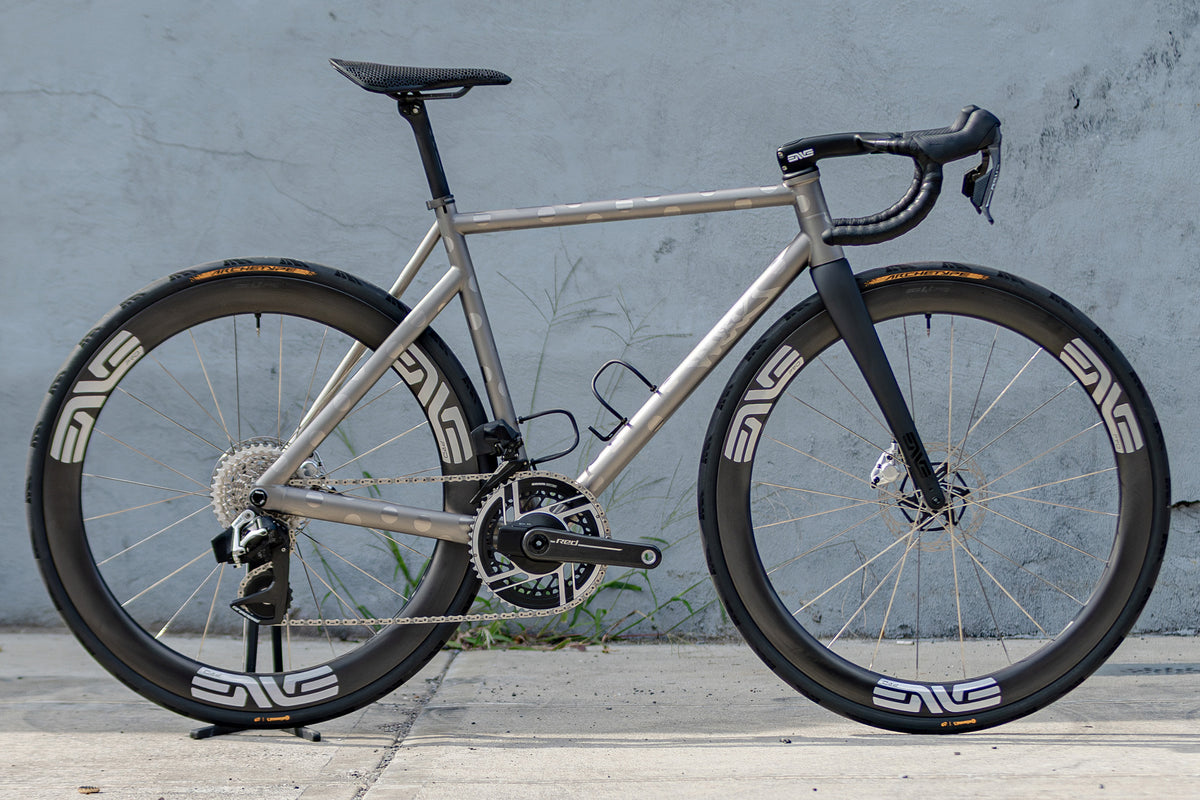

The Hammer Road Ti is our most advanced frame in our lineup. We took everything we learned from years of racing and riding our Aluminum Road frames and applied it to the quality ride and feel of titanium. We highlighted the beauty of titanium with this frame by creating a silky smooth ride for descending and long days in the saddle while keeping the lateral stiffness for aggressive riding and racing.
Our asymmetric rear end keeps your sprints lively while our custom formed and butted titanium tubing allows us to tune the ride to your desired use. Years of R&D went into this frame. From our light weight and customizable 3 piece CNC headtubes, to the use of 3d printing technology to create our lightest road frame yet.
We are offering this frame in ISP and standard seat post configurations. For those of you that want the added stiffness and weight savings of an integrated carbon fiber seat mast we can make that happen. If you want the ease of travel and adjustability of a standard seatpost, that’s fine too.
3D Printed Dropouts
Our dropouts are minimal, lightweight, and versatile. We designed them to keep your frame future proof and crash resistant. With the use of a replaceable UDH hanger system, you can never ruin your frame by bending your derailleur hanger or cross threading your axle. You can simply install a replacement and get back on the road.
Seamless 3AL/2.5V Tubing
We use seamless cold worked and stress relieved Titanium tubing for its light weight and stength.
Tuned Ride
Our ability to cut, form, and weld in house, coupled with our wide range of tubing with varying wall thicknesses and butting profiles allows us to tune our frames based on your size, weight, and riding style. From sprinters to climbers and everything in between, we have you covered.

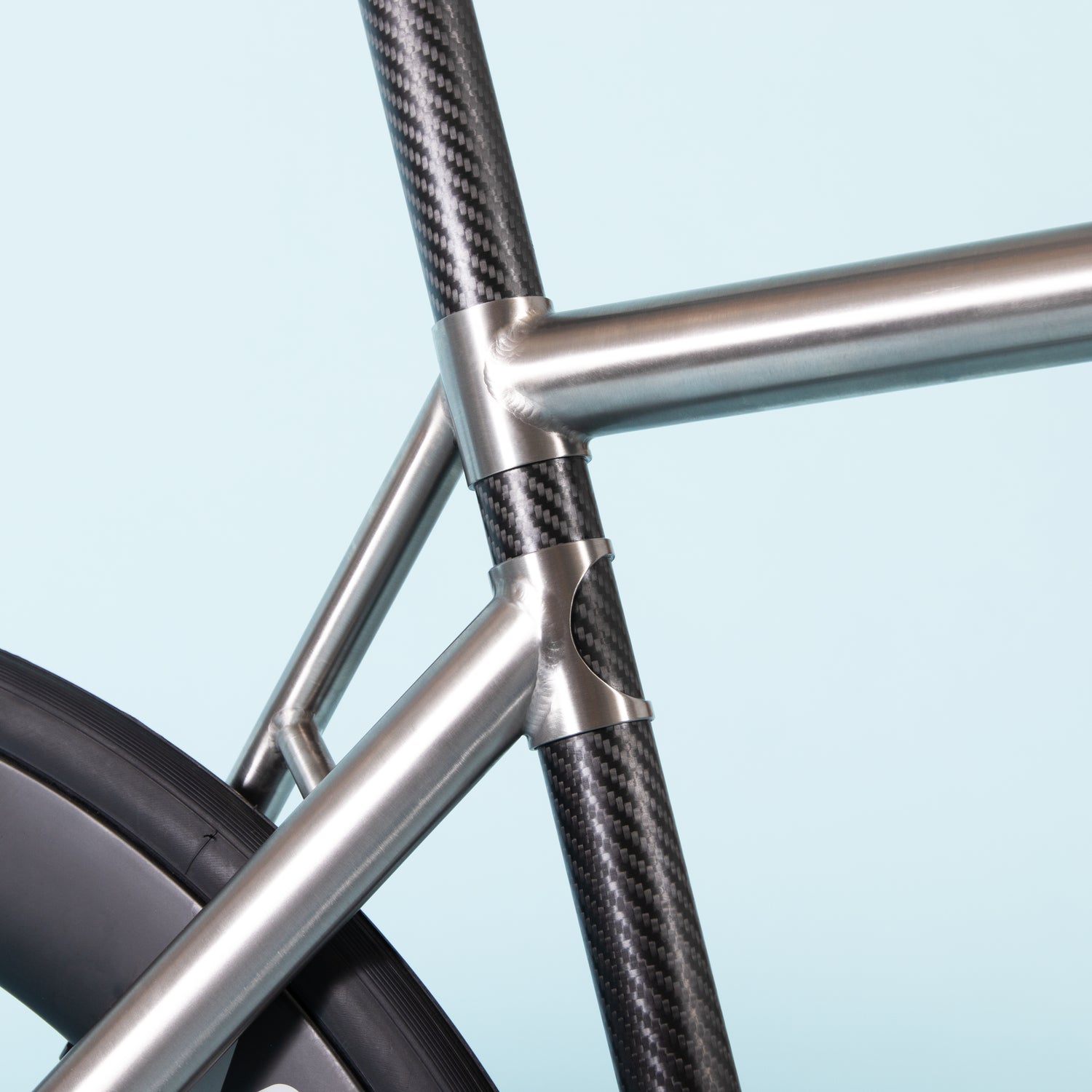

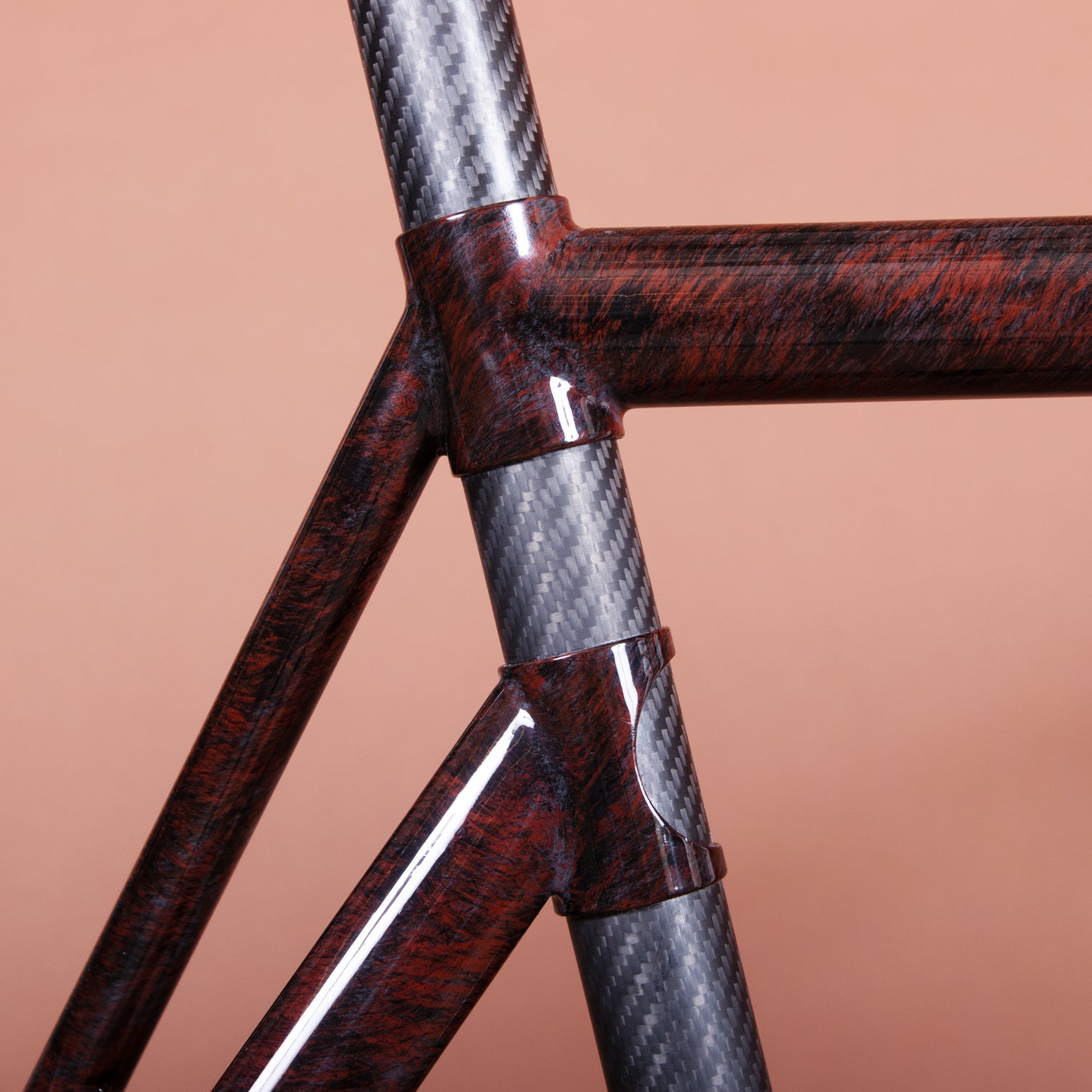

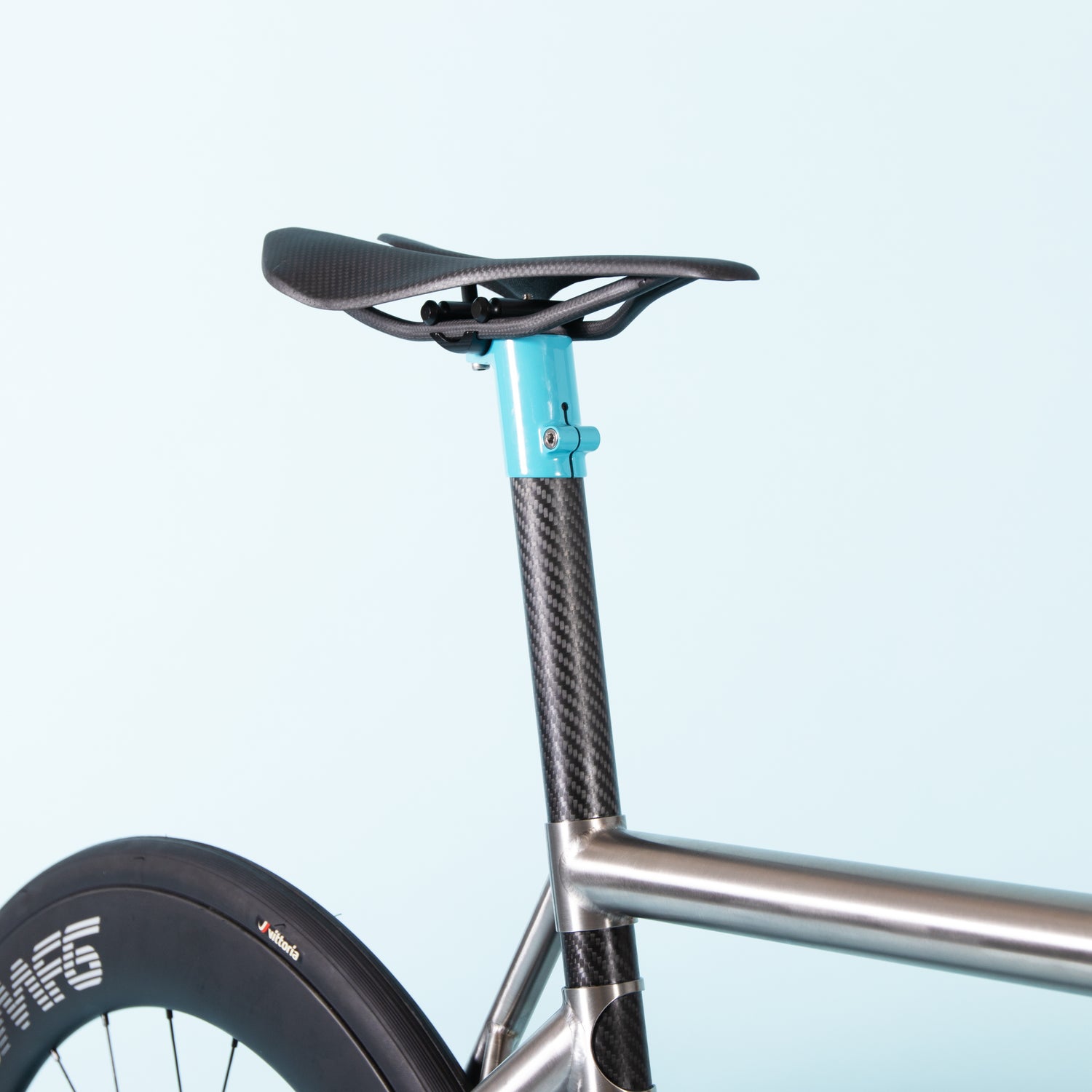

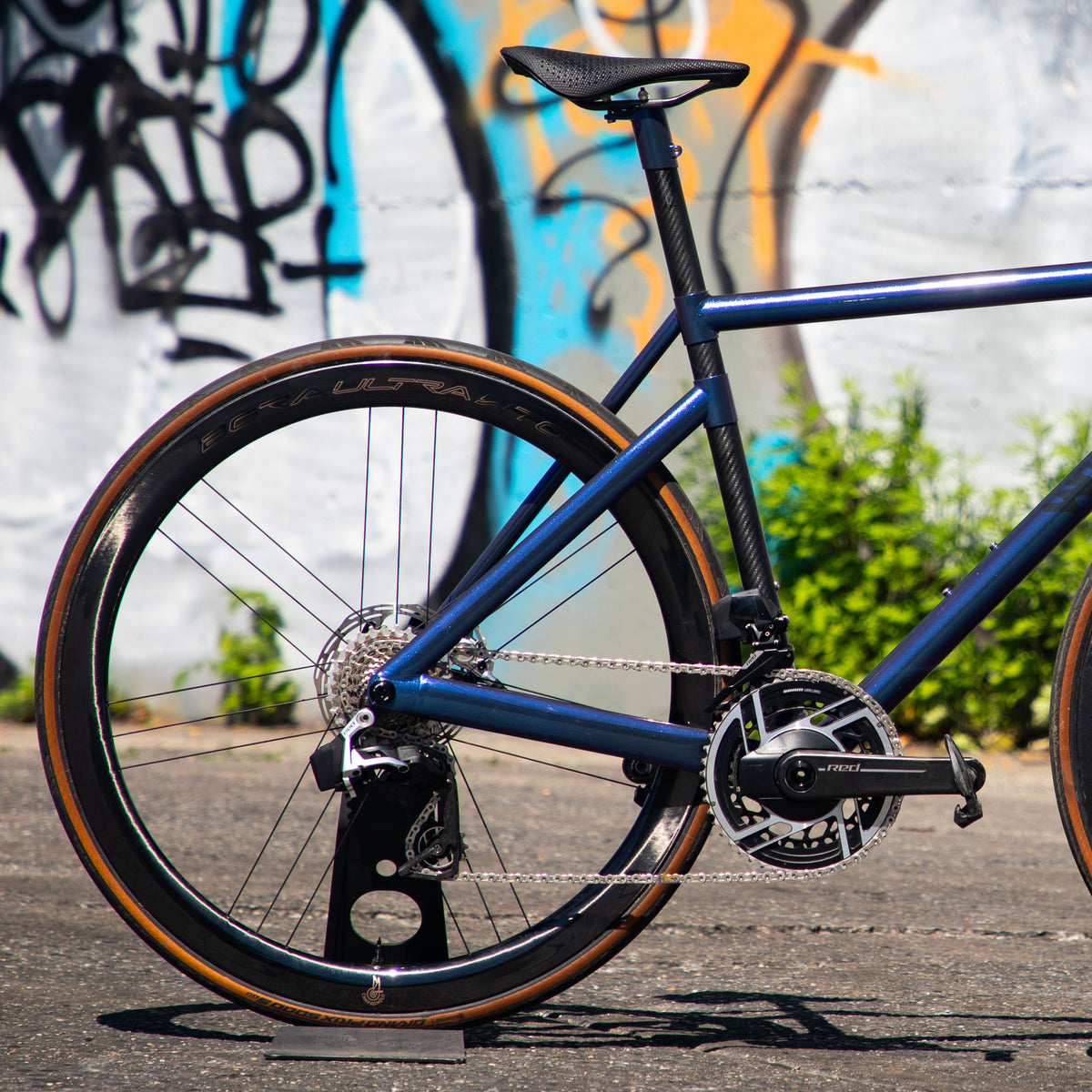

Optional Integrated Seat Mast
Our custom molded carbon fiber seat mast gives the best of both worlds, a trusty metal bike with the lightweight and dampened ride quality of carbon. Lightweight, fast and comfortable.
Custom Geometry
We offer custom geo to our customers for the perfect fit. Fill out our fit form, or we will partner with your local fit studio.

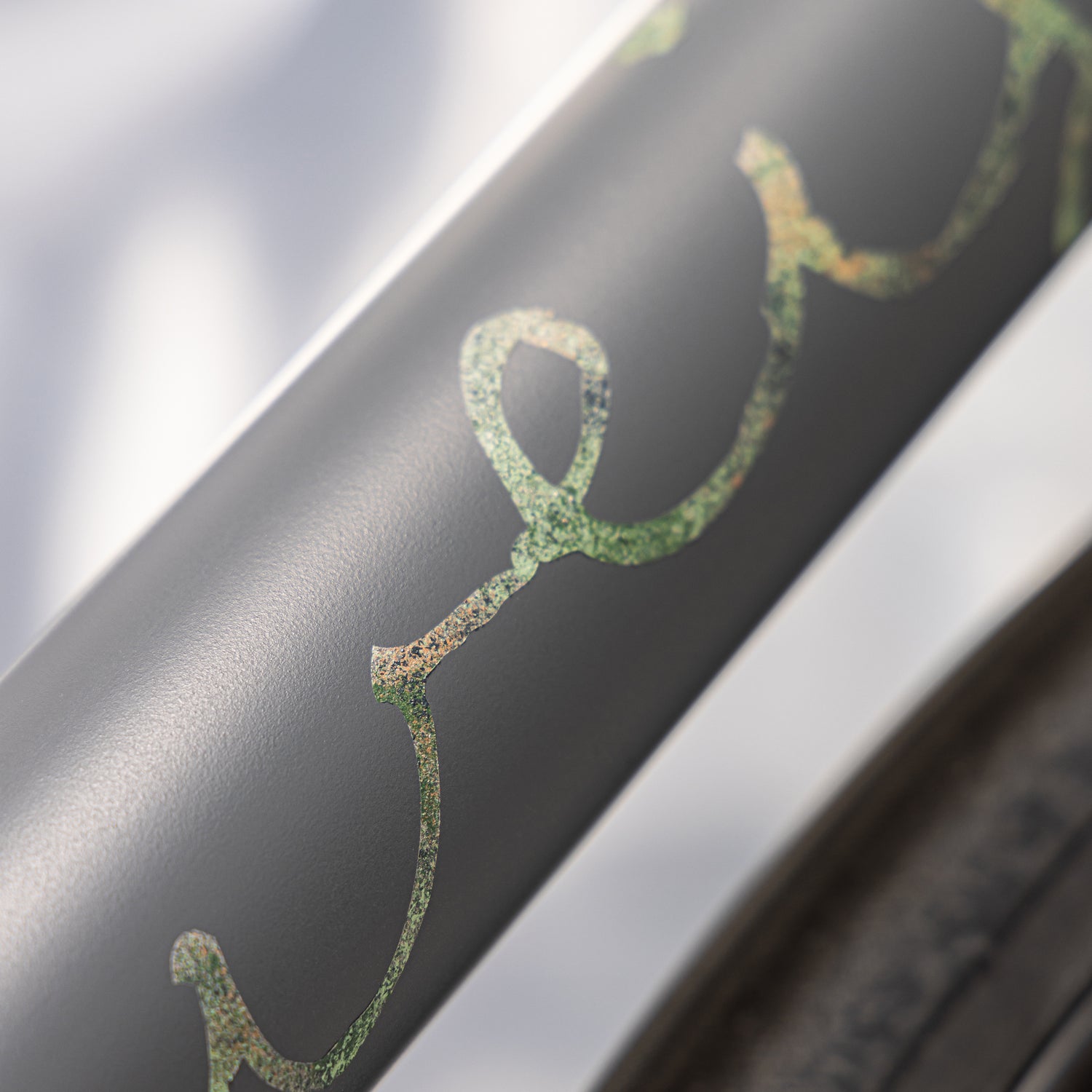

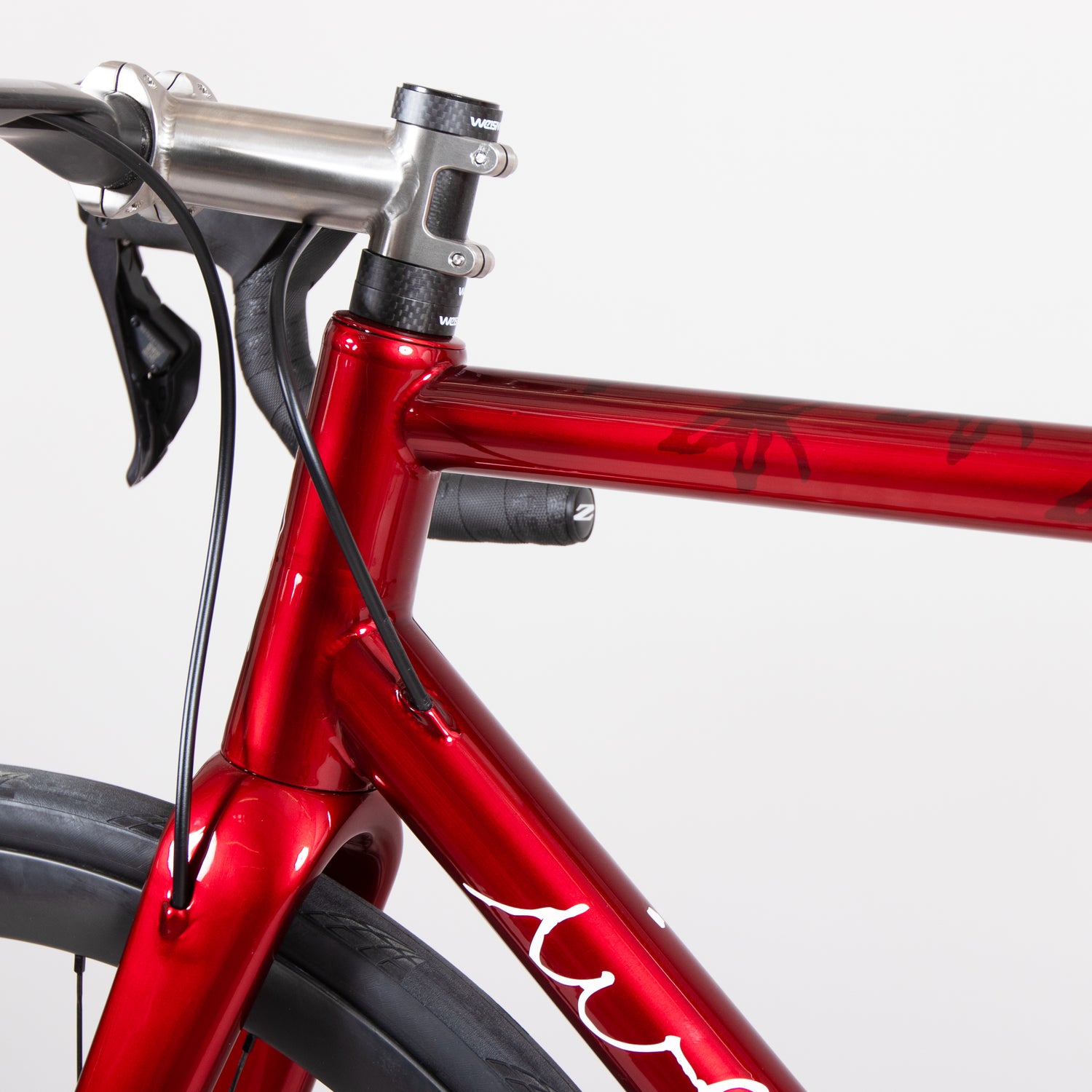

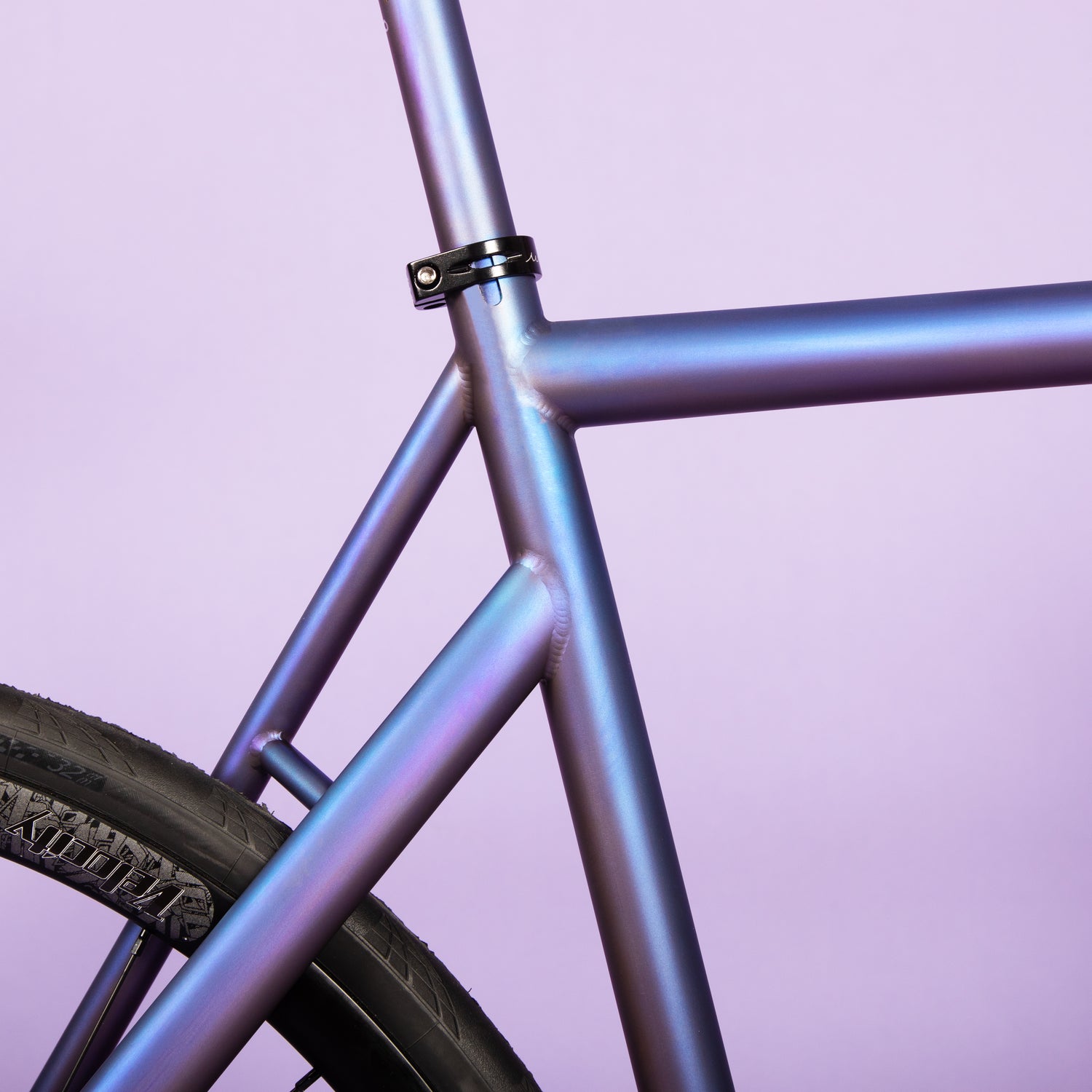

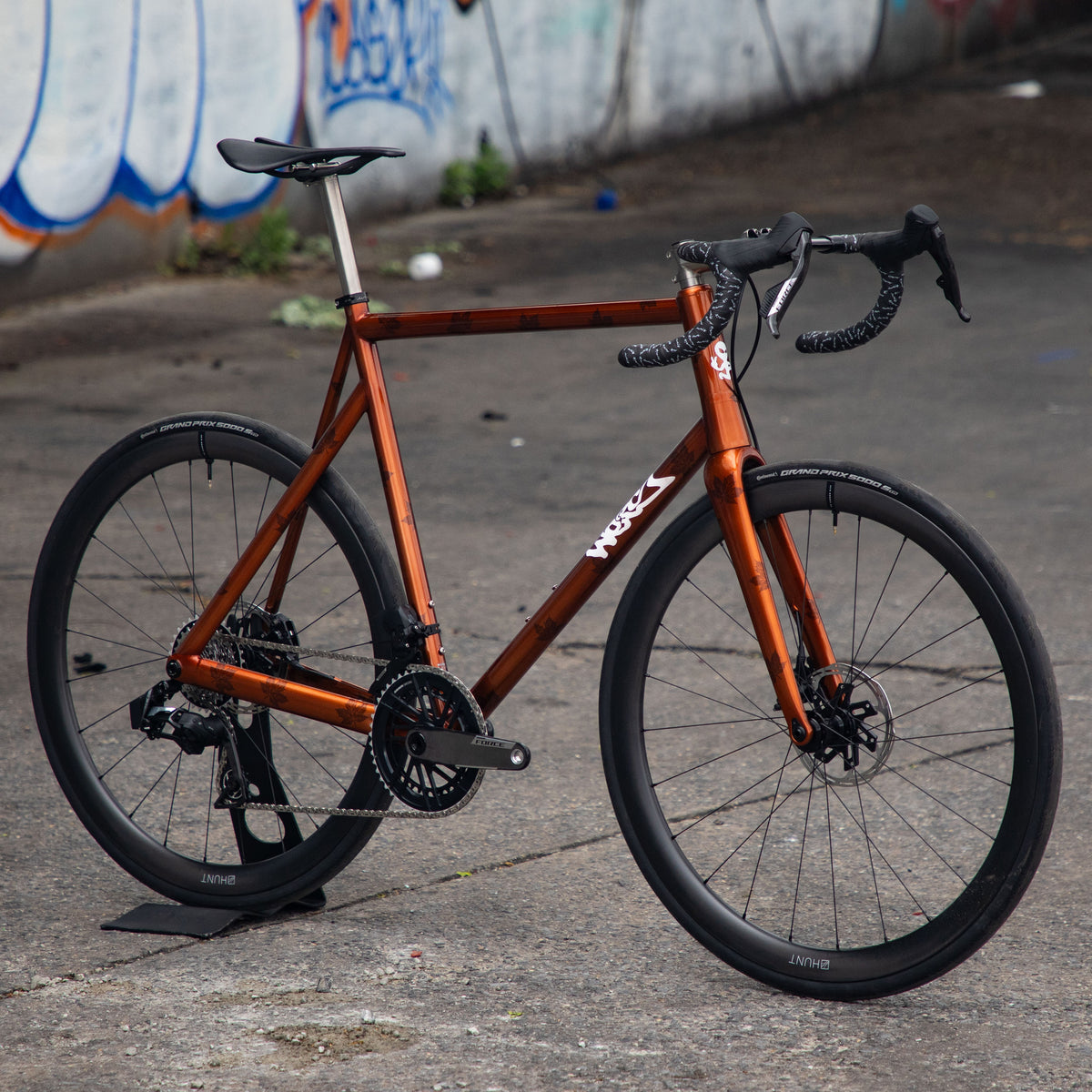

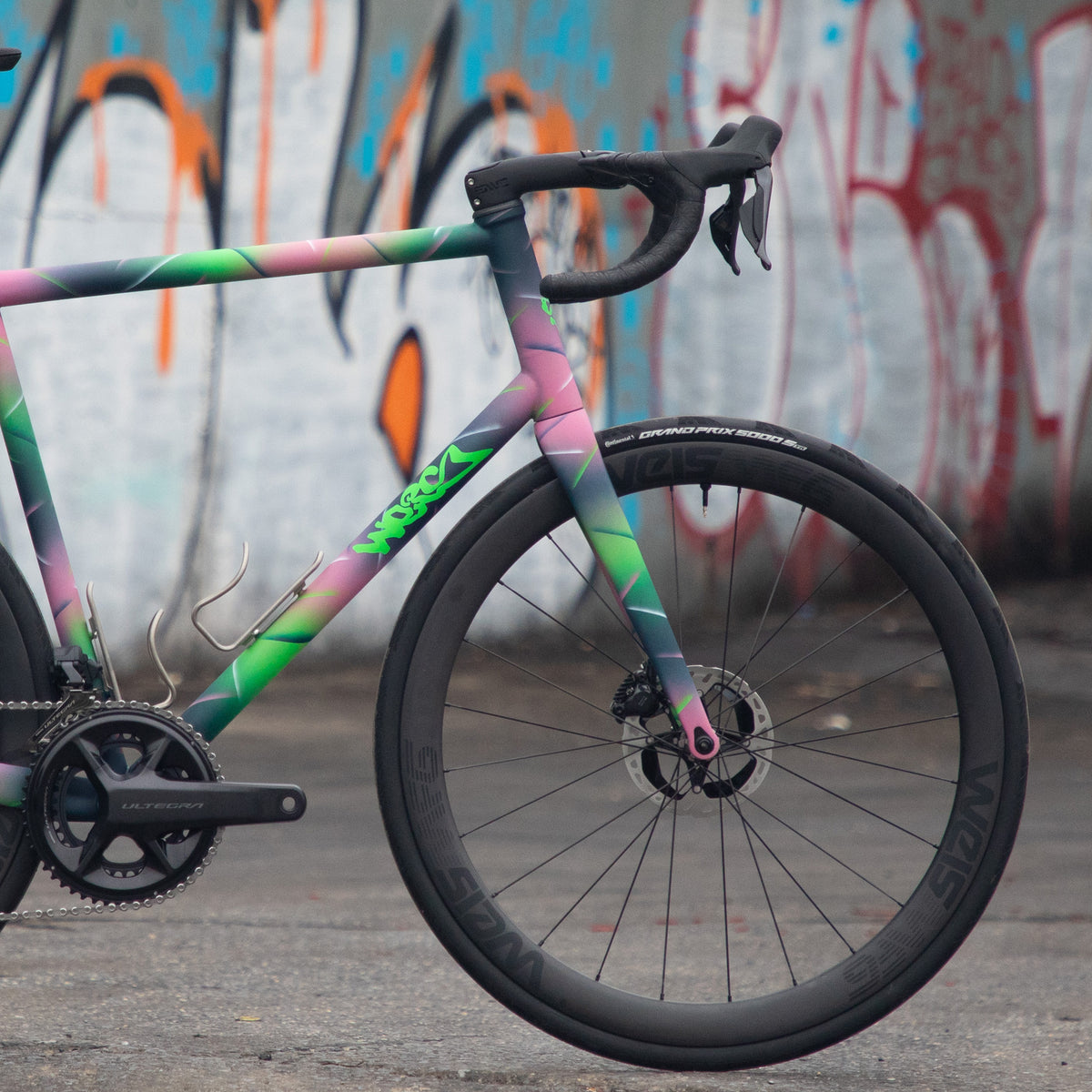

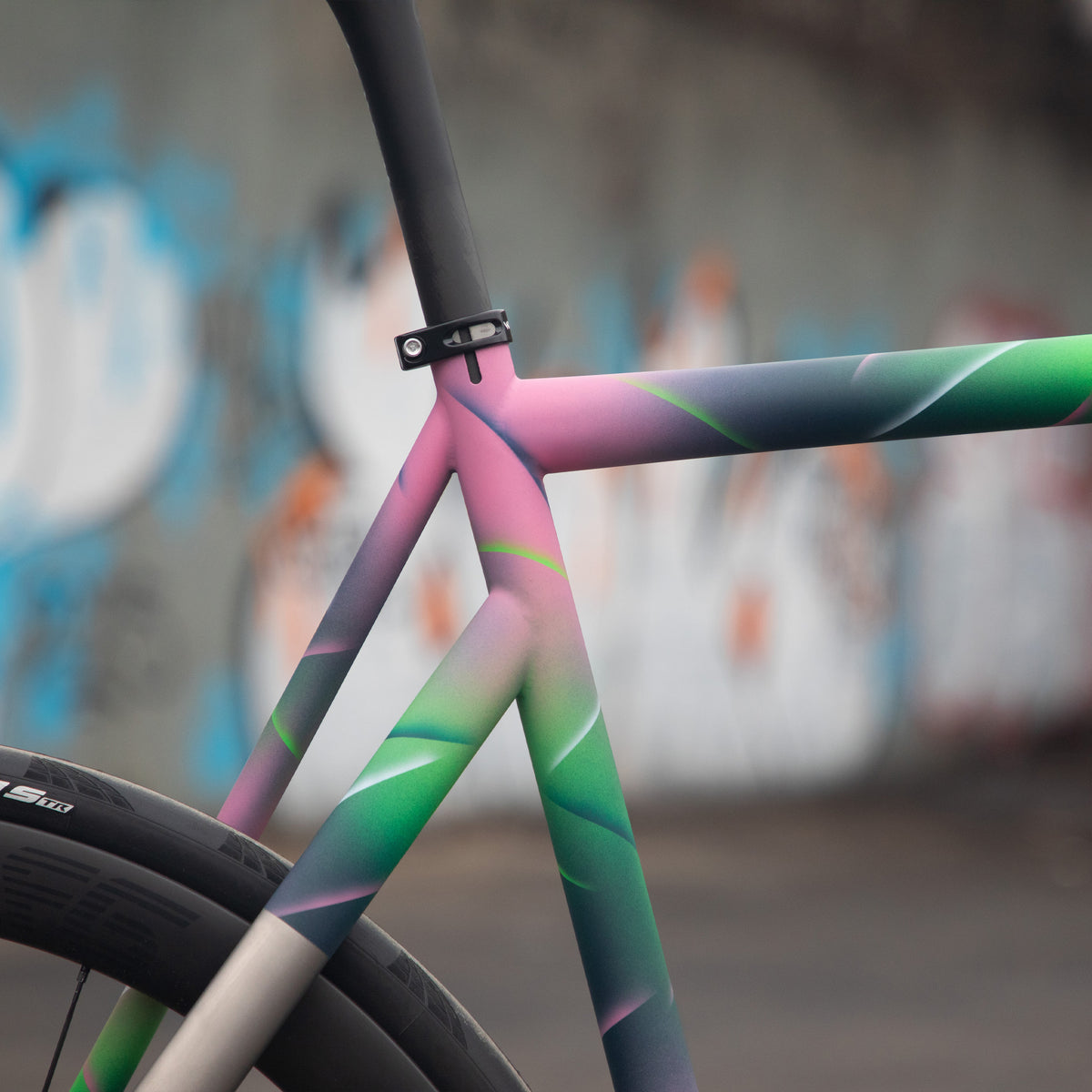

Fully Custom Finishing

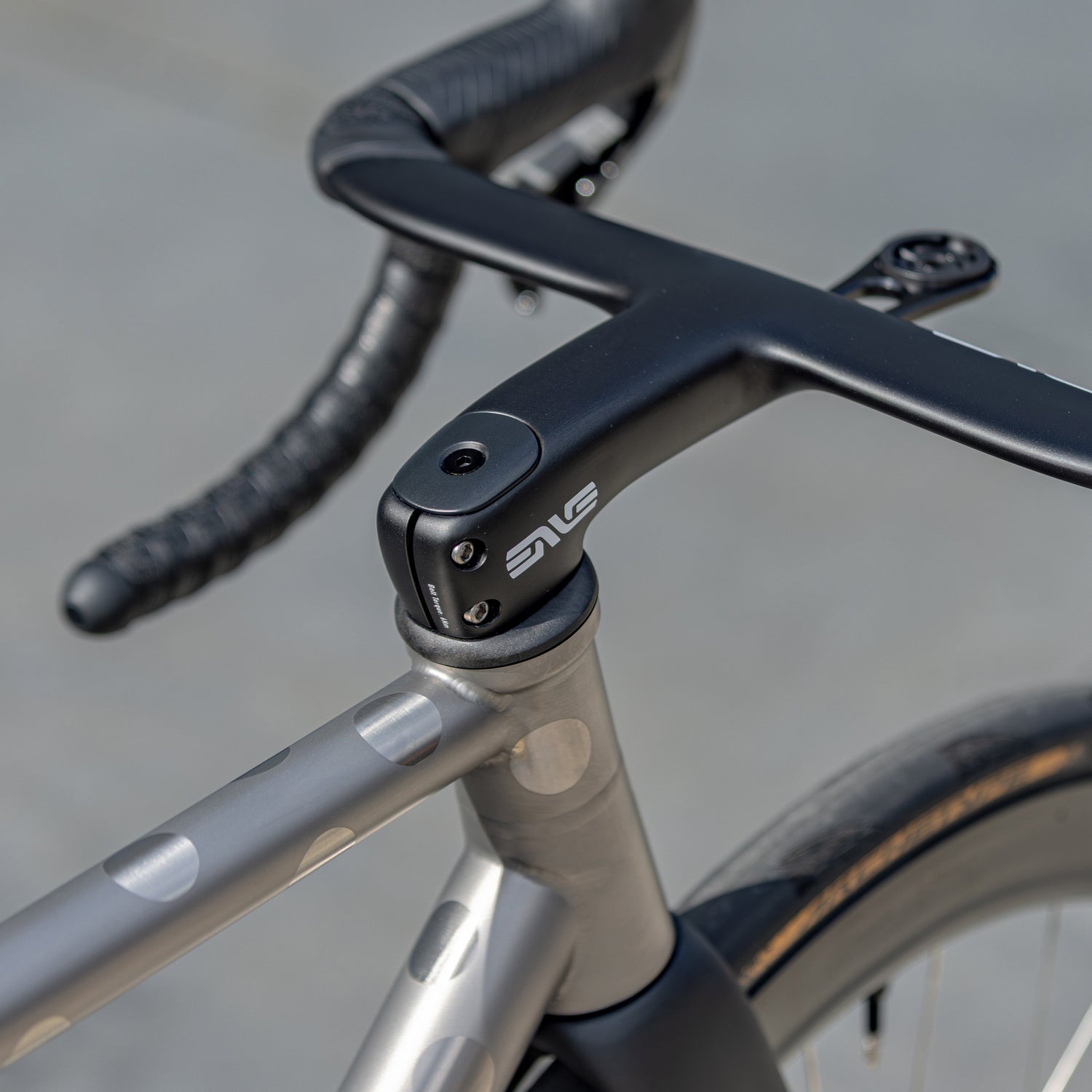

We offer custom finishing with anodizing, Cerakote, and paint. You can also leave some raw titanium showing with brushed, polished, and ceramic blasted finishing options. Want to add components to your scheme? Wheels, stem, bars etc. we can do that too.
Lifetime Warranty
We stand behind the work we do here, a titanium bike is a lifetime bike. All of our Ti creations come with a lifetime warranty.
Make It Your Own
Each frame we build is designed specifically for you. Our tube selections and geometry create endless combinations, and when it comes to finishing, no two paint jobs are the same. Your bike is a one of one machine. We will work with you to help bring your dream bike to life.
-
Specifications:
-3Al-2.5V Titanium Tubing
-*Optional* Custom Molded Carbon Fiber Seat Mast
-Multi-Pass Weld Construction

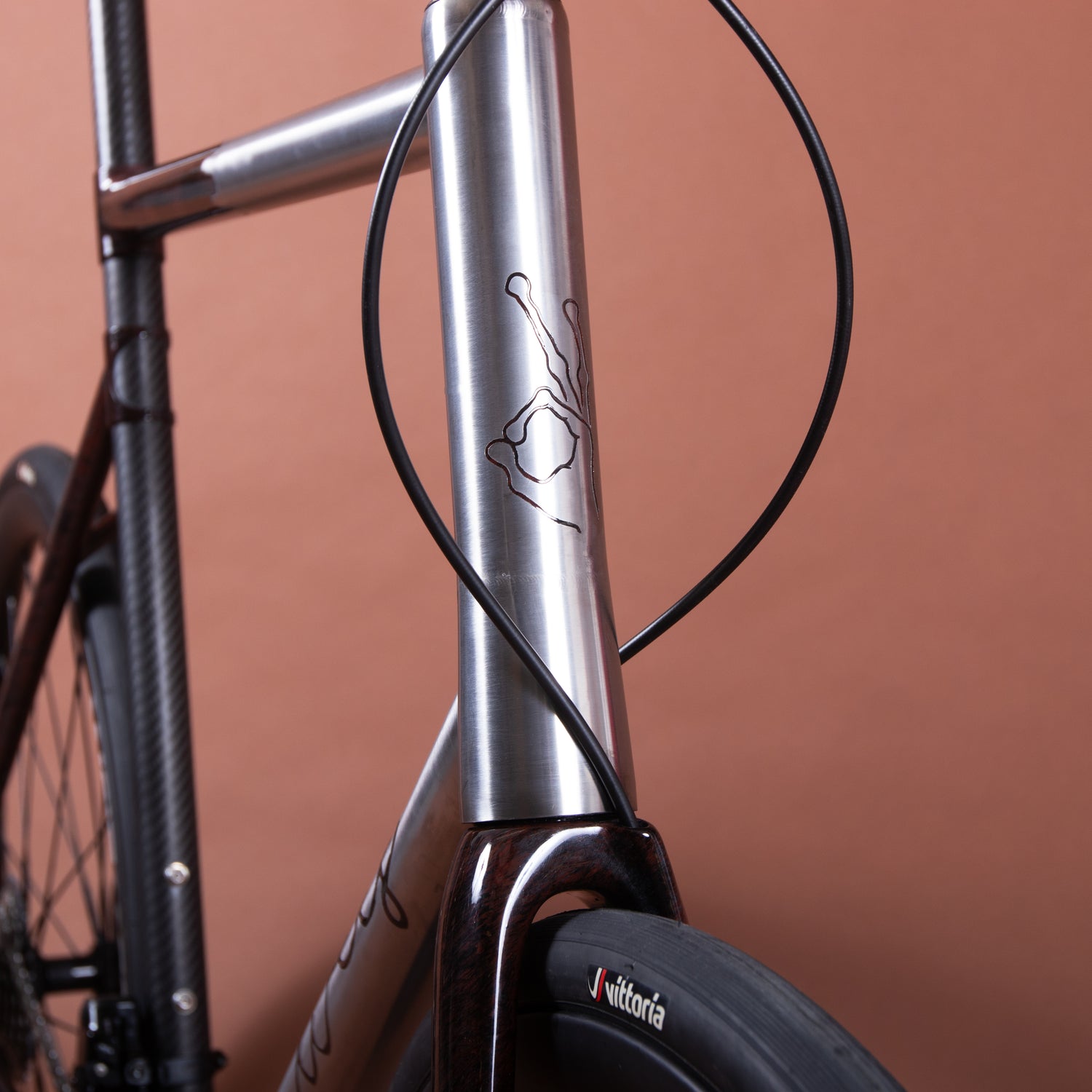

Weis Custom Tubing Profiles-CNC Machined 3 piece Headtube
-3D printed 6/4 Titanium Superlight Dropouts

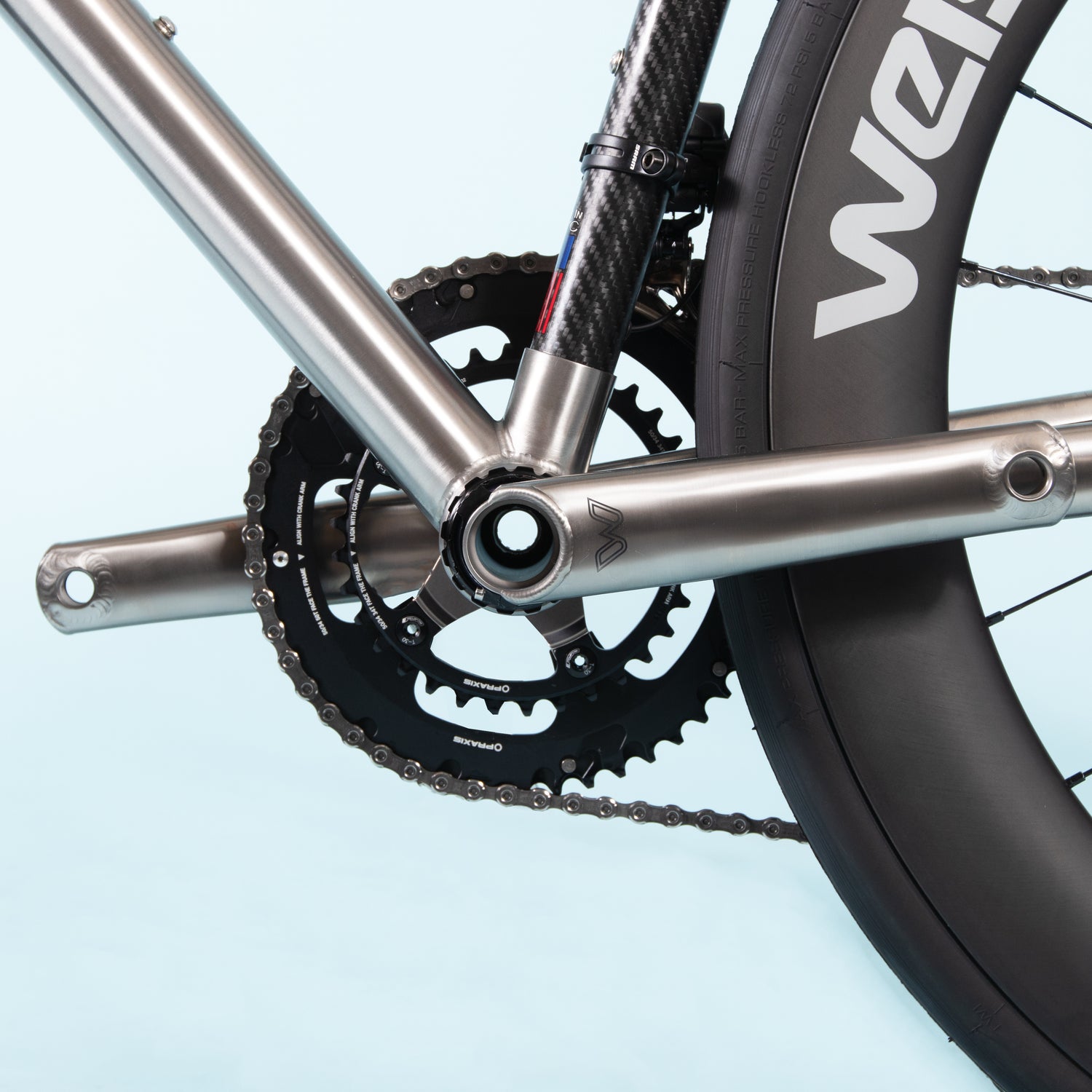

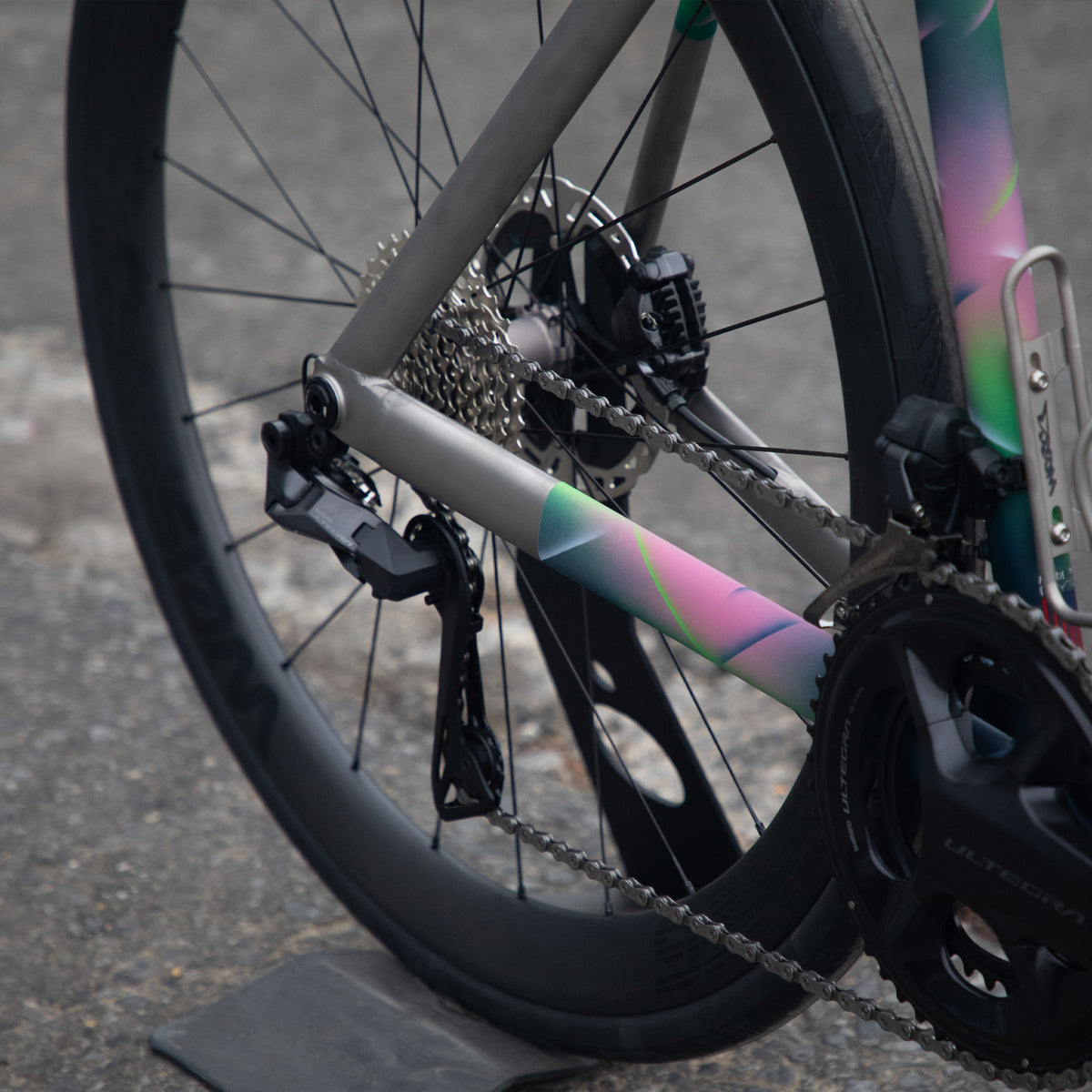

-Weistec Asymmetric Drive Side
-Replaceable UDH Derailleur Hanger
-32c Tire Clearance

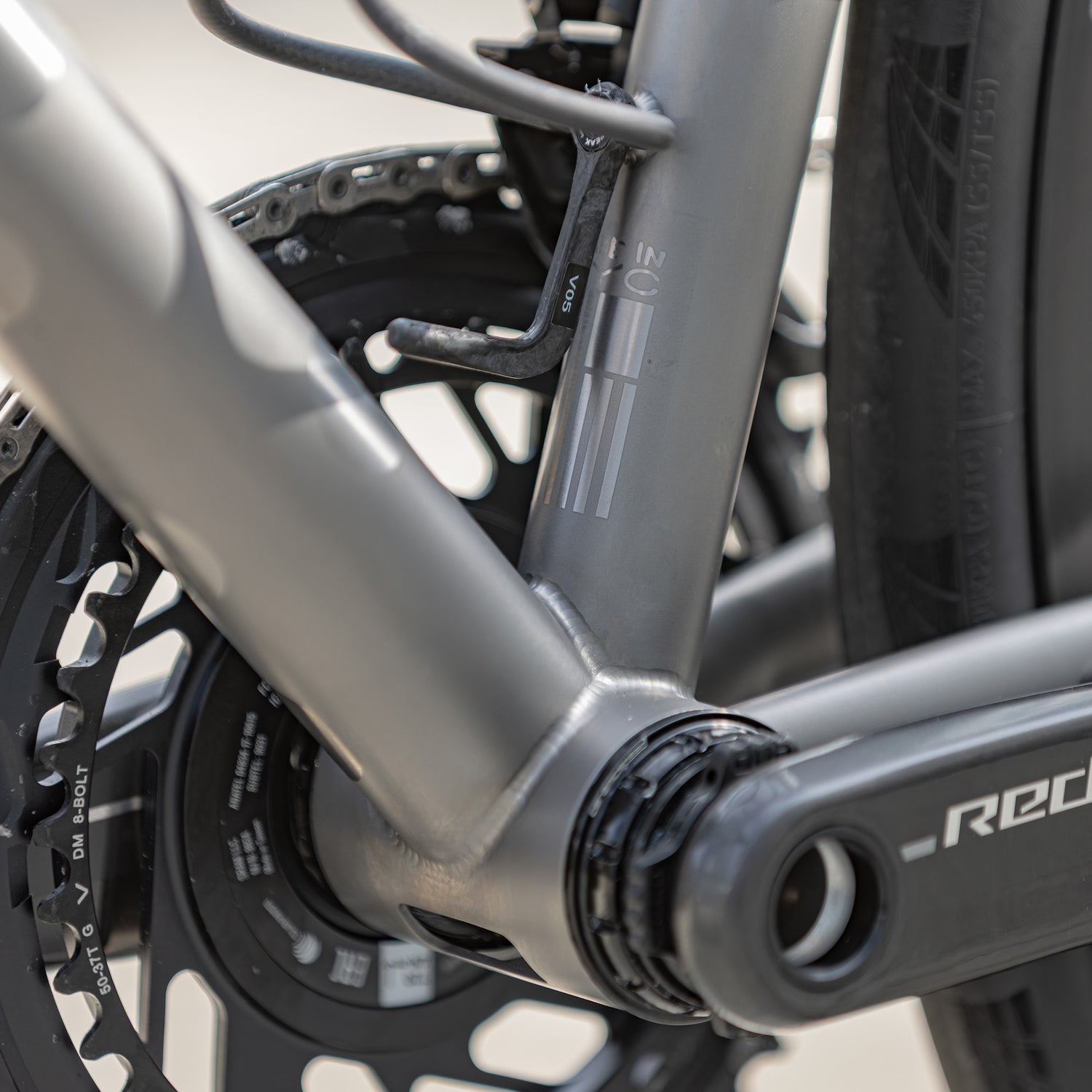

-T47 Bottom Bracket
-Flat mount disc brake compatible
-
What's Included:
-Frameset With Ceramic Bead Blasted Finish and Single Color Anodized Logo
-Weis Signature Headset
-Weis Signature Seat Topper or Seat Collar
-Weis Signature Thru Axles
-Full Carbon Tapered Fork
-Lifetime Warranty
| Frame Size | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm |
| Head Tube Angle | 72° | 72.5° | 73° | 73° | 73.5° | 73.5° |
| Seat Tube Angle | 75° | 74.5° | 74° | 74° | 74° | 74° |
| Top Tube Length(Effective) | 500mm | 530mm | 550mm | 570mm | 590mm | 600mm |
| Seat Tube Length(C-C) | 445mm | 465mm | 485mm | 505mm | 525mm | 545mm |
| Head Tube Length | 107mm | 126mm | 145mm | 167mm | 187mm | 210mm |
| Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| BB Drop | 68mm | 68mm | 68mm | 68mm | 68mm | 68mm |
| Fork Rake | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm |
| Axle To Crown | 372mm | 372mm | 372mm | 372mm | 372mm | 372mm |
| Stack | 507mm | 528mm | 547mm | 569mm | 590mm | 611mm |
| Reach | 363mm | 373mm | 383mm | 396mm | 411mm | 425mm |
