The Hammer Gravel Ti is our most versatile frame in our lineup. We took everything we learned from years of racing and riding our Aluminum Gravel frames and applied it to the quality ride and feel of titanium.
Our asymmetric rear end keeps your sprints lively, while our formed and butted titanium tubing allows us to tune your frame to your riding style and desired use. Our use of digital fabrication technology is as important as the hands that make your frame. Our CNC 3 piece head tubes and use of 3d printing technology help to create our lightest and most robust frame yet, while keeping the slick visual lines our frames are known for.
We are offering this frame in ISP and standard seatpost configurations. For those of you that want the added compliance and weight savings of an integrated carbon fiber seat mast, we can make that happen. If you want the ease of travel, durability and adjustability of a standard seatpost, we can do that too.
From Road To Gravel, And Everything In Between
Looking for an All Road rig? A Gravel Bike? A Cyclocross machine? A Gravel Racer? A Light Tourer? The Gravel Ti can be manufactured to your spec, with tweaks in material and geometry, your frame can hit all of the right marks for you and your needs.

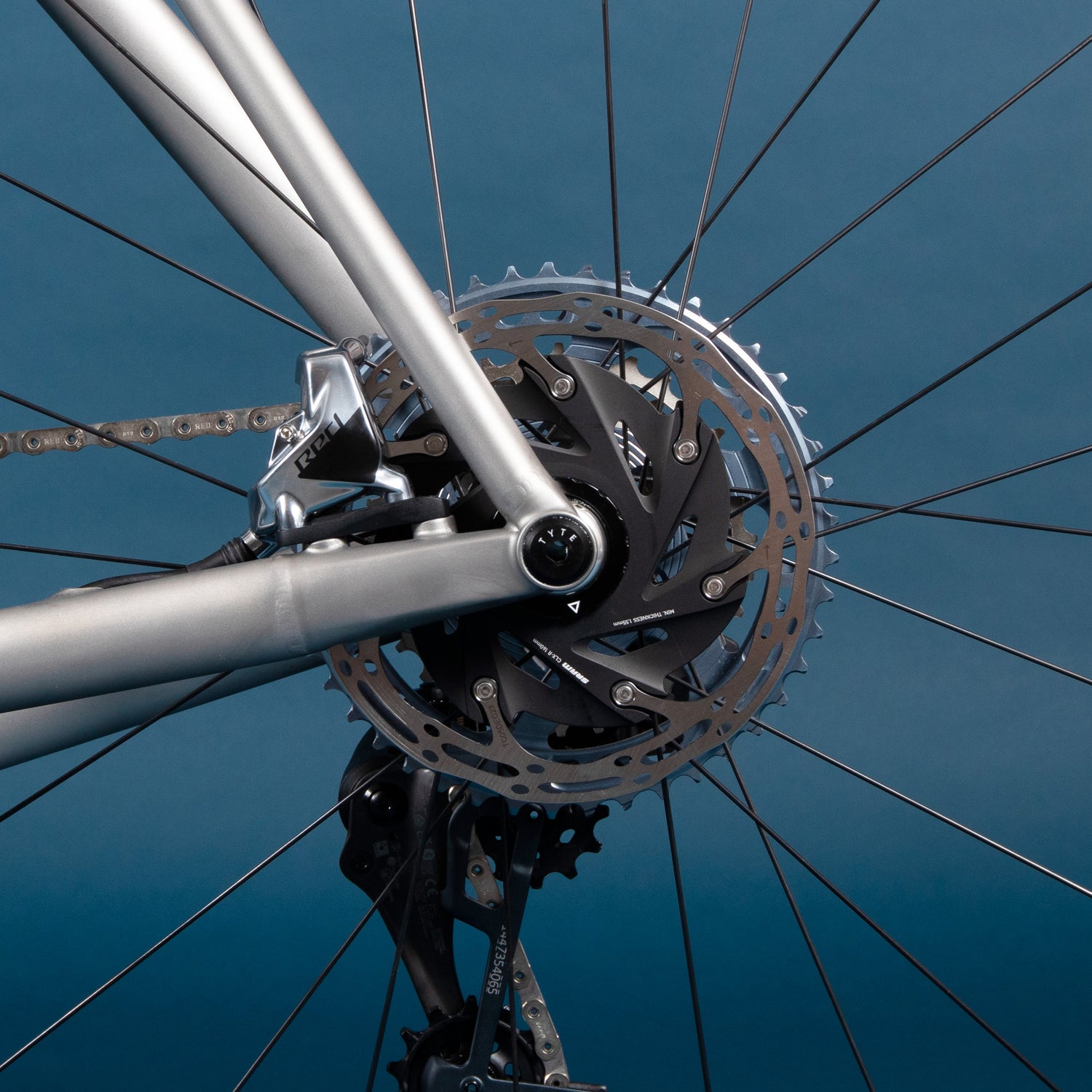

3D Printed Dropouts
Our dropouts are minimal, lightweight, and versatile. We designed them to keep your frame future proof and crash resistant. With the use of a replaceable UDH hanger system, you can never ruin your frame by bending your derailleur hanger or cross threading your axle. You can simply install a replacement and get back on the road.
Seamless 3/2.5 Tubing
Seamless tubing butted, cut and formed in house to your specifications.
Tuned Ride
Our ability to cut, form, and weld in house, coupled with our wide range of tubing with varying wall thicknesses and butting profiles allows us to tune our frames based on your size, weight, and riding style. From sprinters to climbers and everything in between, we have you covered.
Custom Geometry
We offer custom geo to our customers for the perfect fit. Fill out our fit form, or we will partner with your local fit studio.

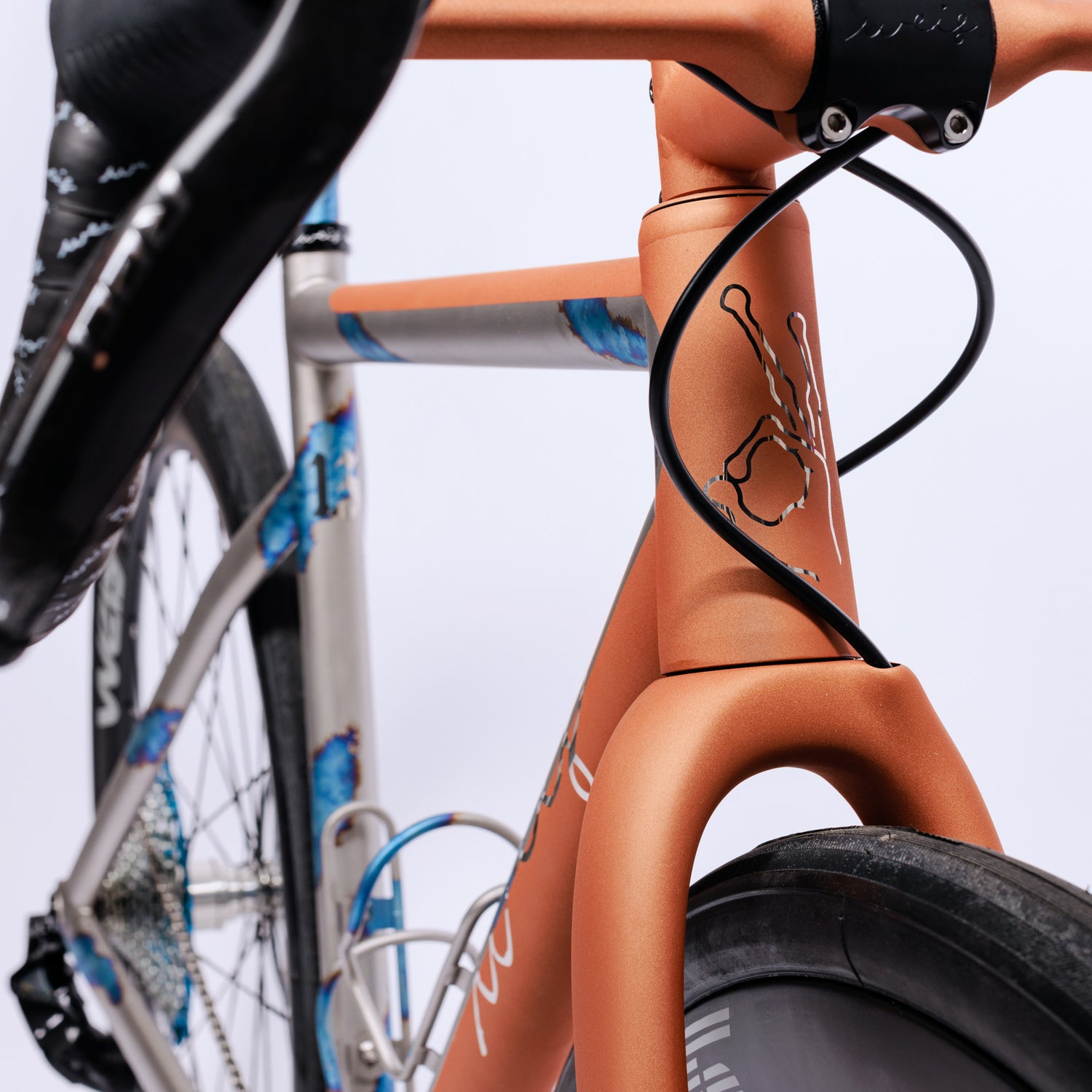

Custom Finishing
We offer custom finishing with anodizing, Cerakote, and paint. You can also leave some raw titanium showing with brushed, polished, and ceramic blasted finishing options. We can also finish your components to match your frame!
Lifetime Warranty
We stand behind the work we do here, a titanium bike is a lifetime bike. All of our Ti creations come with a lifetime warranty.
Make It Your Own
Each frame we build is designed specifically for you. Our tube selections and geometry create endless combinations, and when it comes to finishing, no two paint jobs are the same. Your bike is a one of one machine. We will work with you to help bring your dream bike to life.
-
Specifications
-3Al-2.5V Titanium Tubing
-*Optional* Custom Molded Carbon Fiber Seat Mast
-Multi-Pass Weld Construction
-Weis Custom Tubing Profiles

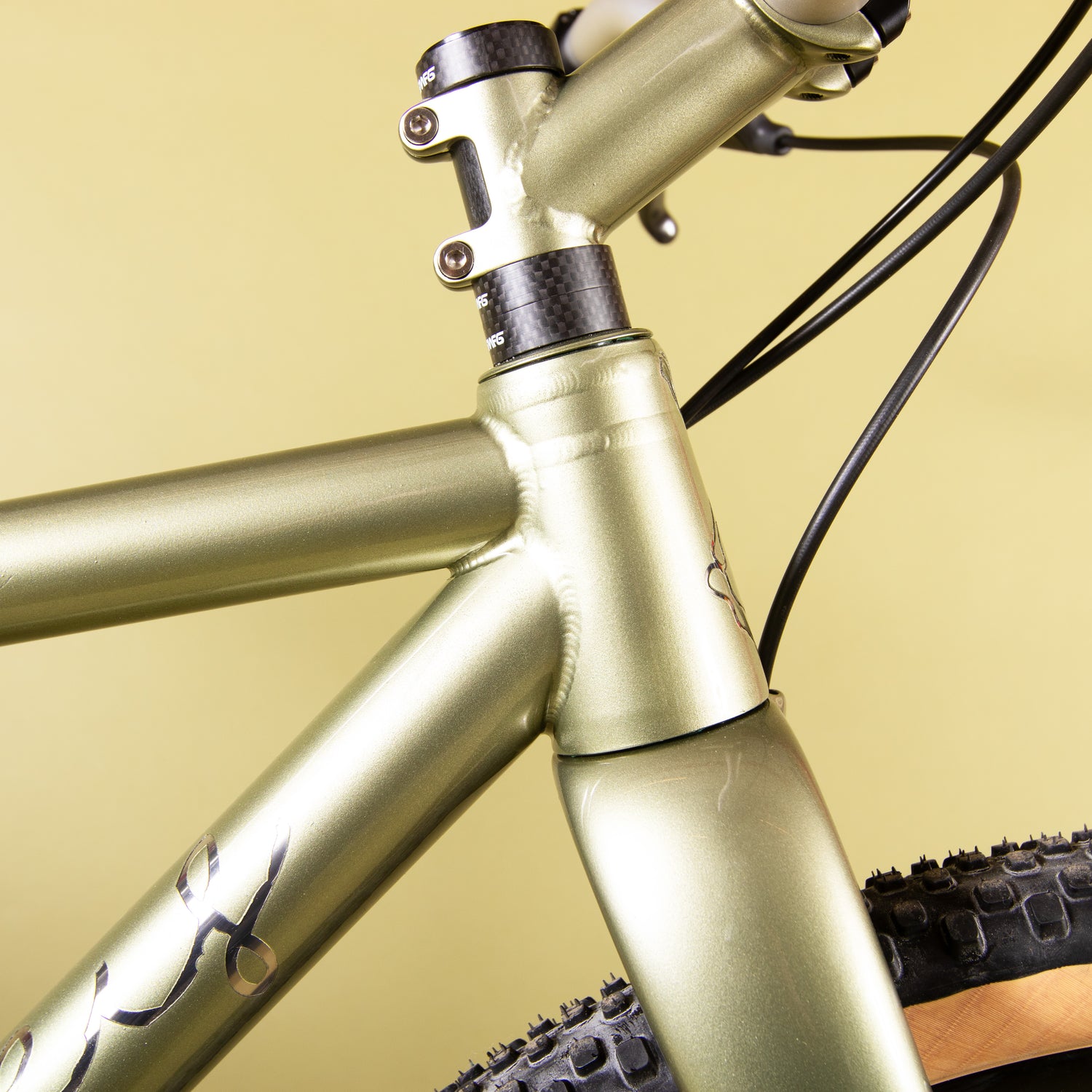

-CNC Machined 3 Piece Headtube
-3D printed 6/4 Titanium Superlight Dropouts-3D Printed 6/4 Titanium Yoke
-Weistec Asymmetric Drive Side
-Replaceable UDH Derailleur Hanger
-700x45 or 650 x 2.1” Tire Clearance
-T47 Bottom Bracket- Flat Mount Disc Brake Compatible
-
What's Included
-Frameset With Ceramic Bead Blasted Finish and Single Color Anodized Logo
-Weis Signature Headset
-Weis Signature Seat Topper or Seat Collar
-Weis Signature Thru Axles
-Full Carbon Tapered Fork
-Lifetime Warranty
| Frame Size | 49 | 52 | 54 | 56 | 58 | 60 |
| Head Tube Angle | 70.5 | 71 | 71 | 71 | 71 | 71 |
| Seat Tube Angle | 74 | 74 | 74 | 74 | 74 | 74 |
| Top Tube (Effective) | 500 | 520 | 540 | 560 | 580 | 600 |
| Seat Tube | 455 | 475 | 495 | 515 | 585 | 545 |
| Head Tube Length | 112 | 133 | 156 | 179 | 203 | 216 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| BB Drop | 72 | 72 | 72 | 72 | 72 | 72 |
| Fork Rake | 50 | 50 | 50 | 50 | 50 | 50 |
| Axle To Crown | 395 | 395 | 395 | 395 | 395 | 395 |
| Stack | 531 | 553 | 575 | 597 | 619 | 631 |
| Reach | 346 | 360 | 374 | 387 | 401 | 418 |
