The Hammer Gravel Steel Plus is one of the most versatile framesets in our lineup - with increased clearance of 700 x 55c, a custom blend of butted and bent tubes optimized for adaptability, and a low slung off-road geometry meticulously designed to keep you in control of your ride. Borrowing specifications from our Gravel Ti Plus, we have maintained the speed and agility of our tested Gravel geometry and reproduced it in the most classic of all bicycle materials: Steel.
The Gravel Steel Plus boasts category-leading tire clearance combined with steel - the tried and true workhorse material. Our meticulously selected combination of lightweight tubing and custom 3D-printed parts comes together to complete the ultimate off-road machine. Strength and longevity no matter what you throw at it, the Steel Plus keeps you going when the road runs out, all without breaking the bank.
Options for 4 bottle cage mounts, frame bags, and rack/fender compatibility make this frame thrive as a gravel racer, all road rig, cross-country tourer or super commuter. Custom geometry mixed with a tunable tubing selection lets us adapt this platform to all your needs.
Tuned For Trails
Designed as a complete system, not just a frameset, the Gravel Steel Plus does exactly what you want it to with each pedalstroke. Long chainstays, a slack headtube, and wider tires give you the confidence you want to lean into those fast corners on loose gravel descents, and plush comfort that encourages you to stay in the saddle longer.

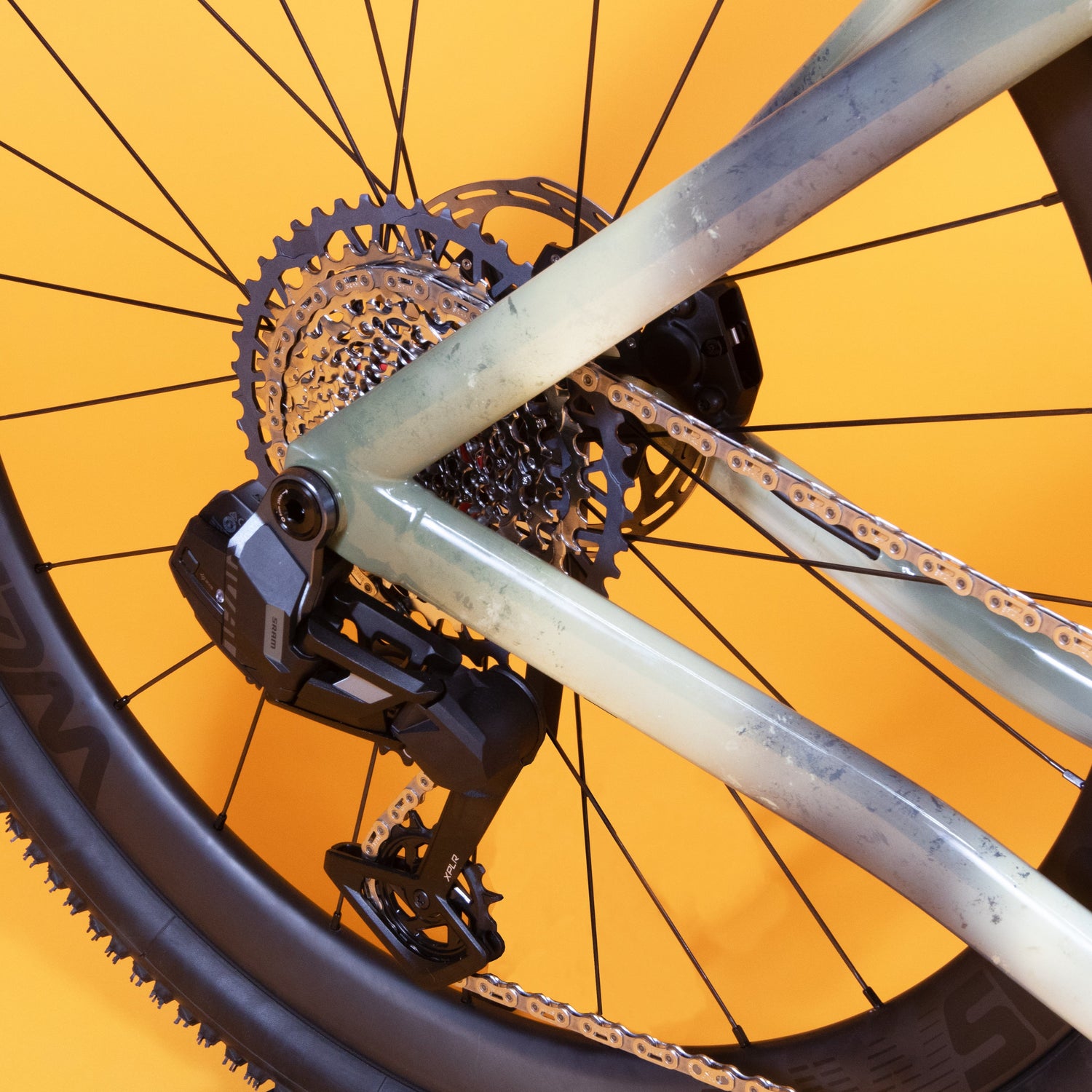

3D Printed Dropouts
Minimal, lightweight, and versatile. Designed to keep your frame future proof and crash resistant. Using a replaceable UDH system, bent hangers and crossed threads are no longer an issue.
Columbus Tubing
Built using a finely measured blend of Columbus thin wall tubing with custom die formed and butted profiles to create that signature steel ride feel. Our frames boast a stiff rear triangle that feels tight and responsive without sacrificing weight, and a precision engineered geometry to put you right where you want to be.
Internal Routing
Available with state-of-the-art full internal cabling for a seamless look throughout. Utilizing the Enve In-Route system, full internal cabling keeps your machine free of clutter, whilst not sacrificing ease of service.
Custom Geometry
Custom Geometry ensures a perfect fit. Fill out our fit form in person or remotely, or we can partner with your preferred fit studio.
Full Custom Finishing
We offer custom finishing using a variety of different methods honed for different results. We are a full service paint studio whose goal is to help bring your vision to reality. Color-matched components are available to tie your finishing scheme together.
Make It Your Own
Creating a precision machine tuned exactly to its rider’s specifications is what gets us up in the morning. Each frame we build is designed specifically for you with dedicated attention throughout each step of the design, fabrication, finishing, and build process. Your bike is a one of one machine.
Built Kit Options
Build Kits are used as pricing guidance for a fully built bike. Our builds are fully customizable.
Collapsible content
SRAM Red XPLR - Starting At $10,330
- Frameset - Weis Hammer Gravel Steel Plus
- Stem - Weis Ti Stem
- Handlebars - ENVE Gravel Flared
- Seatpost - Weis Ti Seatpost
- Saddle - Fizik Vento Argo Adaptive
- Wheels - Weis Carbon Wheelset (Hope Hubs, Sapim Race Spokes)
- Tires - Schwalbe G-One RS
Shimano GRX Di2 - Starting At $9,150
- Frameset - Weis Hammer Gravel Steel Plus
- Stem - Weis Ti Stem
- Handlebars - ENVE Gravel Flared
- Seatpost - Weis Ti Seatpost
- Saddle - Fizik Vento Argo Adaptive
- Wheels - Weis Carbon Wheelset (Hope Hubs, Sapim Race Spokes)
- Tires - Schwalbe G-One RS
SRAM Force XPLR - Starting At $8,725
- Frameset - Weis Hammer Gravel Steel Plus
- Stem - Weis Ti Stem
- Handlebars - ENVE Gravel Flared
- Seatpost - Weis Ti Seatpost
- Saddle - Fizik Vento Argo Adaptive
- Wheels - Weis Carbon Wheelset (Hope Hubs, Sapim Race Spokes)
- Tires - Schwalbe G-One RS
SRAM Rival XPLR - Starting At $6,755
- Frameset - Weis Hammer Gravel Steel Plus
- Stem - Zipp Service Course
- Handlebars - Zipp Service Course
- Seatpost - Zipp Service Course
- Saddle - Fizik Tempo Argo Kium
- Wheels - HED Belgiums with White Industries Hubs
- Tires - Pirelli Gravel M
Full Custom Build - Price TBD
Finishing Options
Finishing options are used as a general overview of what we offer. We are a full custom finishing studio.
Collapsible content
Paint
Our paint jobs are finished using PPG products (automotive grade paint) to ensure a high quality, long lasting finish.
Custom schemes are quoted individually based on the labor, materials, and time involved in bringing the scheme to life.
Our Finish Form is the easiest way to learn more about our offerings and brainstorm elements you are looking for in your full custom finish.
Cerakote
We recommend Cerakote for those looking for the most durable finish available. Cerakote is a ceramic based paint that is highly resistant to scratching and chemicals.
Custom schemes are quoted individually based on the labor, materials, and time involved in bringing the scheme to life.
Our Finish Form is the easiest way to learn more about our offerings and brainstorm elements you are looking for in your full custom finish.
Dealer's Choice
Dealer's Choice is a flat rate that is heavily discounted.
Dealer's Choice is a great way for us to experiment with finishing methods and develop new concepts. We will accept this form and/or inspiration photos. You'll receive a scheme at a discounted price that is sure to be a surprise.
Included Finish For Steel Frames
For those looking for a simple finish, our frameset price includes a single color paint job.
You choose your preference of:
- One basecoat color
- One logo color
-
Specifications
-Mix of Columbus and Cold Drawn 4130 Tubing
-Precision TIG Welded
-Proprietary Die-Formed Tubing Profiles
-CNC Machined 2-Piece Headtube
-3D Printed Stainless Steel Dropouts
-3D Printed Stainless Steel Yoke
-Asymmetric Drive Side
-Replaceable Modified UDH Hanger
-700 x 55c or 29 x 2.25” Tire Clearance
-44t Max Chainring Clearance
-68mm T47 Bottom Bracket
-Flat Mount Disc Brake Mounts
-27.2 Seatpost Diameter, 28.6 External Seattube Diameter
-
What's Included
-Choice of Single Color Base Coat and Logo Color
-Full Carbon Tapered ENVE Adventure Fork
-Weis Signature Headset
-Weis Signature Seat Collar (29.0)
-Weis Signature Thru Axles
-Weis Tyte Top Cap + Expander Plug
-Weis Carbon Spacer Pack (2x 5mm, 2x 10mm)
-8x Button Head Stainless Steel Bottle Cage Bolts
| Frame Size | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm |
| Head Tube Angle | 70.5° | 71° | 71° | 71° | 71° | 71° |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Top Tube Length(Effective) | 500mm | 520mm | 540mm | 560mm | 580mm | 600mm |
| Seat Tube Length(C-C) | 455mm | 475mm | 495mm | 515mm | 535mm | 545mm |
| Head Tube Length | 112mm | 133mm | 156mm | 179mm | 202mm | 215mm |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm | 445mm | 445mm |
| BB Drop | 72mm | 72mm | 72mm | 72mm | 72mm | 72mm |
| Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| Axle To Crown | 398mm | 398mm | 398mm | 398mm | 398mm | 398mm |
| Stack | 531mm | 553mm | 575mm | 597mm | 619mm | 631mm |
| Reach | 346mm | 360mm | 374mm | 387mm | 401mm | 418mm |
